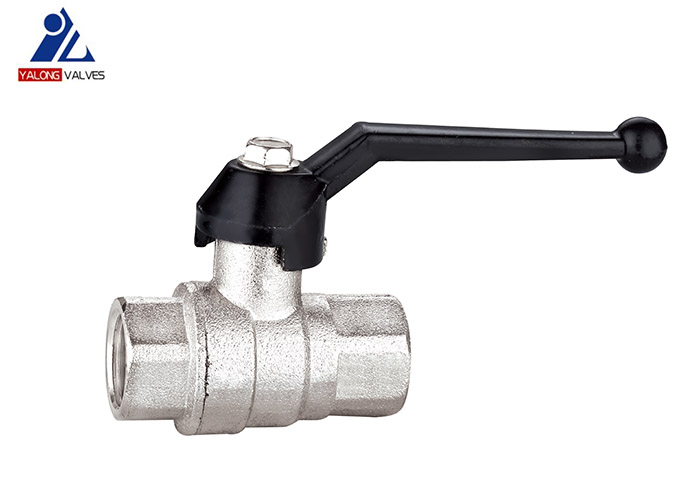

YL288 1/2 '' To 3/4 '' Threaded forged brass ball valve AL Long Handle Nickel Plating
-
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
Yalong
- Model Number:
-
YL288
- Application:
-
General
- Temperature of Media:
-
Normal Temperature
- Power:
-
manual
- Media:
-
Water
- Port Size:
-
1/2"-3/4"
- Structure:
-
BALL
- Connection End:
-
Female * Female Thread
- Working Pressure:
-
PN25
- Channel:
-
Straight Through Type
- Female thread connections comply with:
-
ISO 228 ( BS2779)
- Test:
-
100% CNAS Laboratory test
- Certificate:
-
CE
- Handle color:
-
Black
- Body material:
-
Brass HPb57-3
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle: Iron Handle Plated with chrome, the surface is coated against corrosion, the coating is thickened, comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
- Female x Female brass threaded ball valves with AL handle.
- The thread(NPT or BSP), color of handle, materials, etc. can be customized.
| DN | SIZE | D | H | L | B |
| 15 | 1/2'' | φ15 | 58 | 63.5 | 90 |
| 20 | 3/4'' | φ20 | 61.5 | 70 | 90 |
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass, nickel plating |
| 2 | Bonnet | Brass, nickel plating |
| 3 | Ball | Brass, chrome plating |
| 4 | Seal | PTFE |
| 5 | Stem | Brass |
| 6 | O ring | NBR |
| 8 | Handle | Aluminum |
| 9 | Nut | Iron , chrome plating |
- Certificates
- Enterprise Introduction
EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.
Yalong Valve, classical and durable, is worth your trust!l
Welcome customers from all of world to win-win cooperation; join hands to create a better future!
FQA:
Q: Does your factory have the design and development capabilities, we need the customized products?
A: The staffs in our R&D department are well experienced in the faucet industry, with more than 20 years experience. We can make customized products especially for you, please kindly contact us for more details.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. Our products are produced under A strict quality control system. For batch unqualified products, please contact us. Our company will conduct technical research and test according to the problems, and give you A timely solution according to the corresponding situation.
